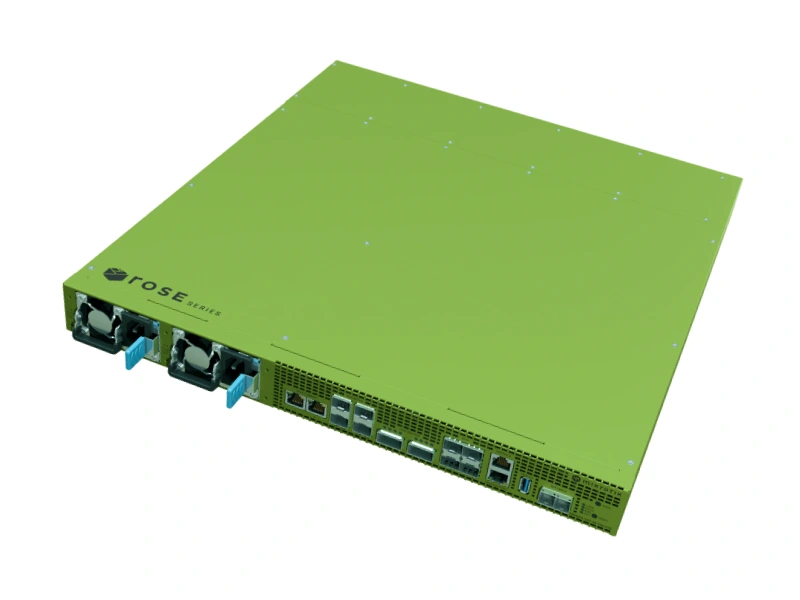

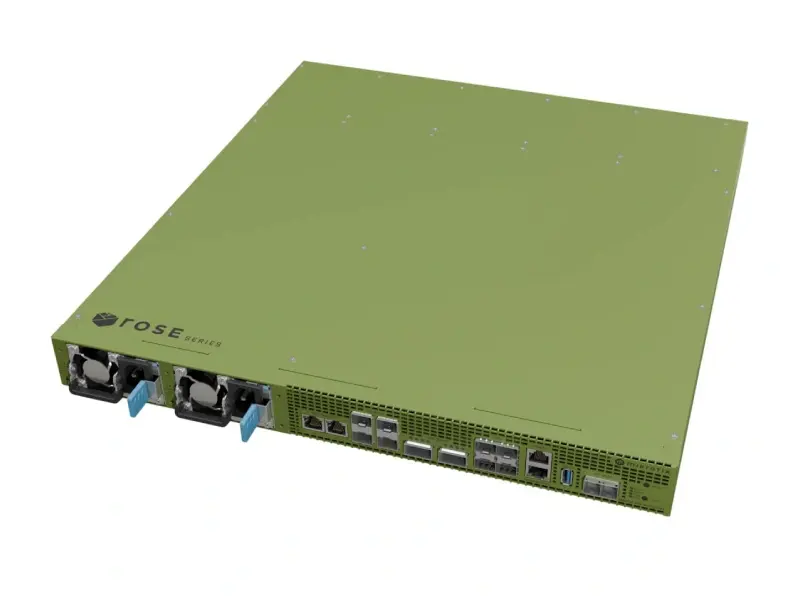

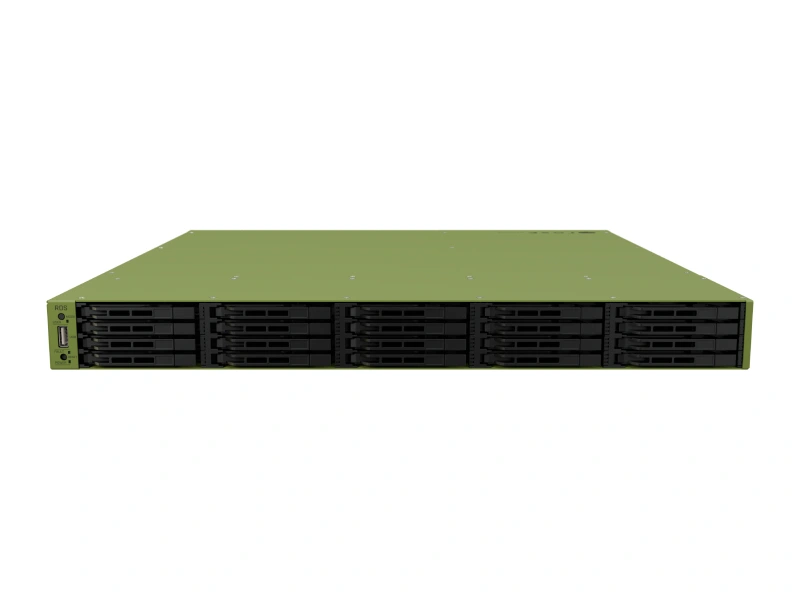

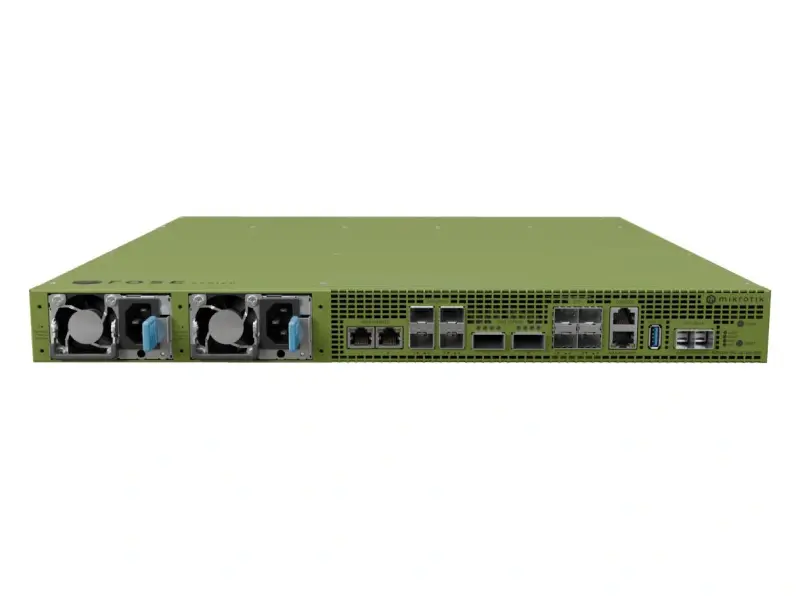

ROSE Data server (RDS)

ROSE Data server (RDS)

716.14 AED 716.14 AED

Not Available For Sale

This combination does not exist.

Contact Us

Share

MikroTik CCR2216 – 100G High-Performance RouterBuilt for High-Traffic NetworksEnergy-Efficient, Data Center ReadyTechnical SpecificationsComparison Table – CCR2216 vs CCR1072 Why Choose the MikroTik CCR2216? Frequently Asked Questions (FAQ)

MikroTik CCR2216 – 100G High-Performance Router

When network performance becomes a business priority, you need a router that is more than just powerful – you need a device built for the future. The MikroTik CCR2216-1G-12XS-2XQ (RBD2216), powered by the all-new 16-core ARMv8 2 GHz CPU, is designed to handle today’s data-hungry environments and tomorrow’s growth.

This router belongs to MikroTik’s Cloud Core Router (CCR) family and represents one of the most advanced platforms the brand has ever produced. With its dual 100G QSFP28 ports and twelve 25G SFP28 cages, it offers unmatched throughput for data centers, ISPs, and enterprises requiring multi-gigabit connectivity with maximum reliability.

Built for High-Traffic Networks

The CCR2216 goes far beyond the role of a typical router – it serves as the core of modern infrastructure. With its 16-core processor and advanced Marvell Prestera switch chip, it delivers reliable high-speed performance even under the most demanding network workloads. Whether you’re running BGP full tables, massive firewall rule sets, or heavy VPN tunnels, this device has the horsepower to keep your network flowing.

With RouterOS v7, you gain access to a modern routing stack with MPLS, Segment Routing, advanced QoS, L3 hardware offloading, and powerful traffic management. This makes the RBD2216 not only a hardware powerhouse but also a flexible software platform.

Energy-Efficient, Data Center Ready

Despite its raw performance, the CCR2216 has been optimized for energy efficiency, consuming significantly less power than many comparable routers. The 2U rackmount design fits seamlessly into any server room or data center environment, ensuring easy integration and scalability.

Redundant hot-swappable power supplies guarantee uptime, while active cooling maintains consistent thermal performance, allowing the device to operate 24/7 without compromise.

Technical Specifications

Feature

Specification

Product Model

MikroTik CCR2216-1G-12XS-2XQ (RBD2216)

CPU

ARMv8 64-bit, 16 cores, 2.0 GHz

RAM

16 GB DDR4 ECC

Storage

128 MB NAND + 1 GB NAND (dual)

Ethernet Ports

1 × Gigabit Ethernet

QSFP28 Ports

2 × 100G

SFP28 Ports

12 × 25G

Switch Chip

Marvell Prestera Aldrin2

Operating System

RouterOS v7 (License Level 6)

USB Port

1 × USB 3.0

Serial Console

RJ45

Dimensions

Standard 2U rackmount

Cooling

Active fans

Power Supply

Dual hot-swappable PSUs, 100–240V AC

Max Power Consumption

~95 W

Operating Temp.

-20°C to +60°C

Comparison Table – CCR2216 vs CCR1072

Feature

MikroTik CCR2216-1G-12XS-2XQ (RBD2216)

MikroTik CCR1072-1G-8S+

CPU

ARMv8 64-bit, 16 cores @ 2.0 GHz

Tilera Tile-Gx72, 72 cores @ 1 GHz

RAM

16 GB DDR4 ECC

16 GB DDR3

Ethernet Ports

1 × Gigabit Ethernet

1 × Gigabit Ethernet

High-Speed Ports

12 × 25G SFP28 + 2 × 100G QSFP28

8 × 10G SFP+

Switch Chip

Marvell Prestera Aldrin2

N/A (CPU-based forwarding)

Routing Throughput

Up to 600 Gbps aggregate

Around 80 Gbps aggregate

Operating System

RouterOS v7 (License Level 6)

RouterOS v6 (License Level 6)

Storage

128 MB NAND + 1 GB NAND

128 MB NAND

Power Supply

Dual hot-swappable, redundant

Dual hot-swappable, redundant

Power Usage

~95 W

~150 W

Dimensions

2U rackmount

1U rackmount

Release Year

2022

2014

 Why Choose the MikroTik CCR2216?

If your business depends on fast, reliable, and scalable networking, the MikroTik CCR2216 provides a future-proof solution. With 100G capability, high-core ARM CPU power, and full RouterOS flexibility, this router is designed to be the heart of modern enterprise and ISP networks.

 Frequently Asked Questions (FAQ)

Q1: What is the main advantage of the CCR2216 compared to previous MikroTik CCR models?

A1: The CCR2216 introduces a 16-core ARMv8 CPU and Marvell Prestera switch chip, making it the first MikroTik router to support dual 100G ports with full hardware offloading for L3 routing.

Q2: Who should use the CCR2216?

A2: It’s ideal for ISPs, large enterprises, and data centers that need extreme throughput, scalability, and advanced routing features.

Q3: Can the CCR2216 handle full BGP routing tables?

A3: Yes. With 16 GB ECC RAM and RouterOS v7’s optimized routing stack, it can manage full Internet routing tables with ease.

Q4: Does the device support redundant power?

A4: Absolutely. It comes with dual hot-swappable power supplies, ensuring uninterrupted operation in mission-critical networks.

MikroTik Chateau 5G R17 ax – Premium 5G & Wi-Fi6 Router for High-Speed Mobile InternetWhat Makes the Chateau 5G R17 ax Stand OutTechnical SpecificationsComparison: Chateau 5G R17 ax vs ATL 5G R16Final Thoughts & Call to ActionFrequently Asked Questions (FAQ) – MikroTik Chateau 5G R17 ax

MikroTik Chateau 5G R17 ax – Premium 5G & Wi-Fi6 Router for High-Speed Mobile Internet

If you're seeking lightning-fast mobile broadband with solid Wi-Fi inside your home or office, the Chateau 5G R17 ax is designed to deliver. This router merges the latest Release 17 5G modem, dual-band Wi-Fi 6 coverage, and modern hardware to support intense data demands, heavy streaming, gaming, and advanced networking—without sacrificing reliability.

What Makes the Chateau 5G R17 ax Stand Out

  • Next-Gen 5G Performance: Equipped with the RG650E-EU modem, the Chateau supports Release 17 5G in both standalone (SA) and non-standalone (NSA) modes. This means blistering download rates up to 7.01 Gbps and uploads up to 1.25 Gbps on 5G SA, while also offering fallback on LTE Cat 20 when needed.
  • Dual-Band Wi-Fi 6: With simultaneous 2.4 GHz (574 Mbps) and 5 GHz (1200 Mbps) Wi-Fi 6, Wi-Fi connections feel smoother and more stable—especially in multi-device environments and areas with many wireless networks.
  • Wide Band Support & Antenna Quality: Full support for many FDD/TDD bands in 5G and LTE, 4×4 downlink MIMO, dual Wi-Fi antenna chains, and solid external antenna options. Great reception, even at weak signals.
  • Robust Hardware & RouterOS v7: Powered by a quad-core IPQ-6010 CPU (1.8 GHz), 1 GB RAM and 128 MB storage. Comes with RouterOS v7, License Level 4, giving you access to IPSec acceleration, VLANs, QoS, security tools, and frequent firmware updates.
  • Flexible Ports & Features: 4 × Gigabit Ethernet ports, plus one 2.5 Gbps port for high-speed wired devices. Has a Micro-SIM slot and built-in eSIM for carrier flexibility. USB Type A port included for storage or peripherals.

Technical Specifications

Feature

Specification

Product Code

S53UG+5HaxD2HaxD-TC&RG650E-EU

CPU Architecture & Speed

ARM 64-bit, Quad-Core IPQ-6010, 1.8 GHz nominal

RAM / Storage

1 GB RAM, 128 MB NAND Flash

Wireless Bands

Dual-band Wi-Fi 6: 2.4 GHz (802.11b/g/n/ax), 5 GHz (802.11a/n/ac/ax)

Wi-Fi Data Rates

Up to 574 Mbps on 2.4 GHz, 1200 Mbps on 5 GHz

Antenna Gain

3 dBi (2.4 GHz), 6 dBi (5 GHz)

5G / LTE Support

5G SA & NSA, LTE Cat 20, many FDD + TDD bands, 4×4 DL MIMO, 1×1/2×2 UL depending on mode

Ethernet Ports

4 × 1 Gbps + 1 × 2.5 Gbps port

SIM Options

Micro-SIM slot + built-in eSIM

USB Port

USB 2.0 Type-A

Power

DC jack 12-28 V, adapter included (24 V 1.2 A); max power draw ~26 W, typical ~16-18 W without external attachments

Operating Temp

–40 °C to +70 °C

Certifications

CE, EAC, RoHS

Additional Monitors / Buttons

CPU temp, PCB temp, mode button, voltage monitor, sync/WPS buttons MikroTik



Comparison: Chateau 5G R17 ax vs ATL 5G R16

Feature

Chateau 5G R17 ax

ATL 5G R16

5G Modem Standard

Release 17 (RG650E-EU), higher DL/UL rates

Release 16, slightly lower throughput in many bands

Wi-Fi

Dual-band Wi-Fi 6 with 2.4 + 5 GHz, good data rates, robust antenna

Also Wi-Fi 6, but lower performance in certain antenna gains

Ethernet Ports

4 × 1 Gbps + 1 × 2.5 Gbps

Usually 1 Gbps only ports or fewer higher-speed ports

SIM Flexibility

Micro SIM + eSIM built-in

Also supports SIMs but often lacks built-in eSIM or fewer options

Power Consumption

Up to ~26 W under full load

Slightly less efficient in older models

Best Use Case

Homes/offices needing desktop router with high 5G speed + strong WiFi inside

More tailored for simple outdoor CPE or fallback links

Ideal Use Cases

  • Households or small offices desiring ultra-fast 5G connections plus strong WiFi coverage.
  • Mobile professionals who switch between ISPs and benefit from dual-SIM/eSIM functionality.
  • Users streaming 4K/8K content, gaming, or using bandwidth-intensive apps concurrently.
  • Edge locations needing reliable backup to wired connections or wanting a high-performance main internet line without fiber.

Final Thoughts & Call to Action

The MikroTik Chateau 5G R17 ax is a cutting-edge router that bridges the gap between mobile network performance and home/office WiFi flexibility. With its high-speed 5G Release 17 support, dual-band WiFi 6, robust hardware, and flexible SIM options, it’s built to handle modern internet demands without compromise.

Frequently Asked Questions (FAQ) – MikroTik Chateau 5G R17 ax

Q1: What makes the Chateau 5G R17 ax different from older 5G routers?

A: It uses a Release 17 5G modem (RG650E-EU), which delivers faster download speeds, lower latency, and broader band support compared to older 5G models.

Q2: Does it support eSIM as well as physical SIM cards?

A: Yes. The router includes both a micro-SIM slot and a built-in eSIM, so you can easily switch between carriers without replacing the physical card.

Q3: Can I use the Chateau 5G R17 ax as my primary home internet connection?

A: Absolutely. With 5G speeds up to 7 Gbps and dual-band Wi-Fi 6, it’s powerful enough to replace wired broadband for streaming, gaming, and remote work.

Q4: How good is the Wi-Fi coverage inside a house or office?

A: It offers 2.4 GHz and 5 GHz Wi-Fi 6 with multiple antennas (3 dBi & 6 dBi gain), providing stable coverage even in multi-room environments with many devices.
