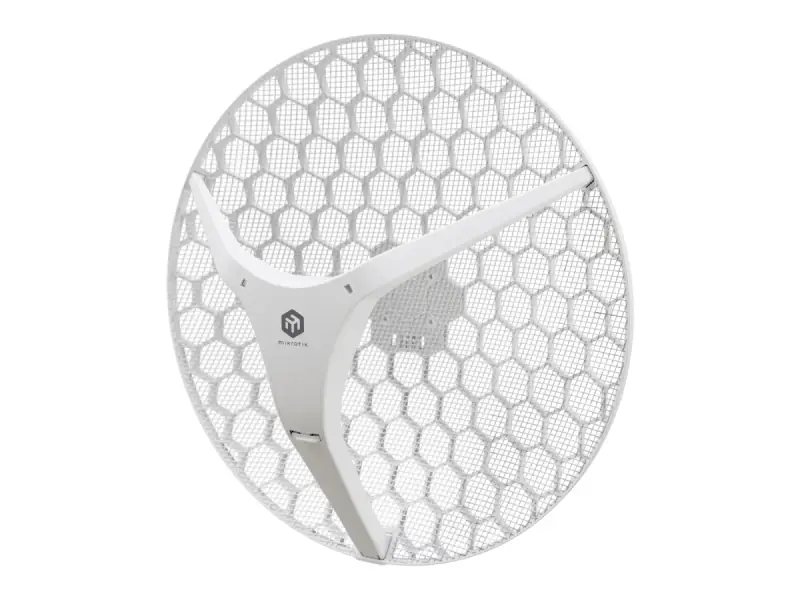

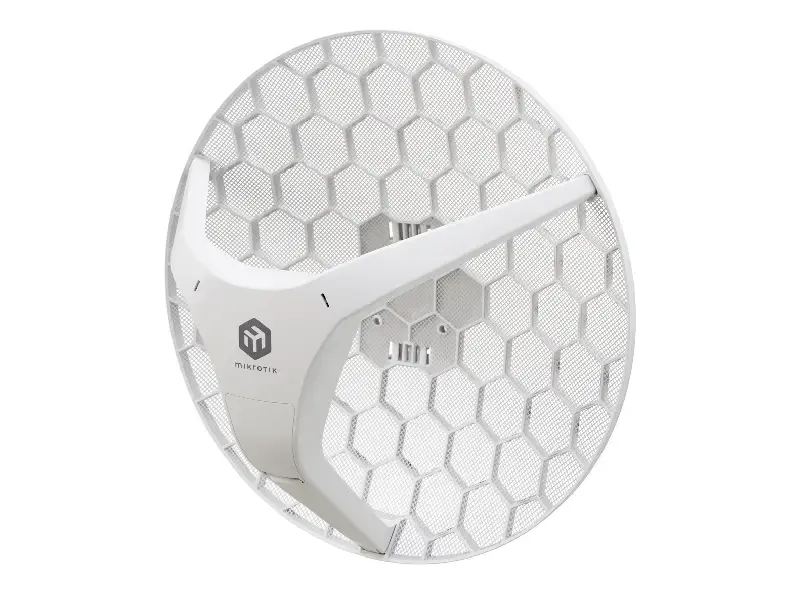

LHG XL 5 ax MikroTik – Extra Power Wi-Fi 6 Outdoor Radio
When extending network coverage across vast distances, you don’t want just any wireless device—you need a powerhouse engineered for range and reliability. The MikroTik LHG XL 5 ax is built for that: a compact, rugged CPE combining Wi-Fi 6 speed, precision antenna design, and durable construction. It’s purpose-built for point-to-point links up to 30 km—all at a price that won’t break your budget.
What Makes LHG XL 5 ax Exceptional?
- Next-gen Wi-Fi 6 (802.11ax) ensures more efficient, stable, and higher-speed wireless connectivity—even across challenging RF environments.
- 27 dBi high-gain antenna offers extraordinary range. It consistently handles links up to 30 km when conditions are ideal.
- Passive PoE power (12–28 V) with only 5 W consumption simplifies deployment without compromising efficiency.
- Runs RouterOS v7 with a level 3 license: load-balancing options, advanced firewall, traffic shaping, and full routing all included.
- Built tough: IP54 weather rating, operating in extreme temperatures (–40 °C to +70 °C), and a high MTBF for long-term outdoor use.
Technical Specifications
Feature | Specification |
Product Code | LHG-5axD-XL |
CPU | Dual-core ARM IPQ-5010 @ 800 MHz |
RAM / Storage | 256 MB RAM, 128 MB NAND |
RouterOS | v7, License Level 3 |
Wireless Standard | 802.11a/n/ac/ax (Wi-Fi 6) |
Data Rate | Up to 1200 Mbps (5 GHz) |
Antenna Gain | 27 dBi integrated grid |
Power Input | Passive PoE-in, 12–28 V |
Power Consumption | Max 5 W |
Ethernet | 1 × Gigabit RJ-45 |
Outdoor Rating | IP54, -40 °C to +70 °C |
Certifications | CE, FCC, IC, EAC, RoHS |
MTBF | ~200,000 hours at 25 °C |
Included Accessories | 24 V adapter, PoE injector, K-LHG kit, hose clamps |
Comparison: LHG XL 5 ax vs LHG 5 ax (24.5 dBi)
Feature | LHG XL 5 ax (27 dBi) | LHG 5 ax (24.5 dBi) |
Antenna Gain | 27 dBi | 24.5 dBi |
Maximum Link Distance | Up to 30 km | Up to 20 km |
Price | Same as older models | Slightly lower |
Range Advantage | Ideal for very long links | Great for medium-range situations |
This bigger version is tailored for extreme distances, while the standard model is more suited for most everyday applications.
Ideal Use Cases
- ISP point-to-point links spanning rural expanses without fiber.
- Remote site connectivity, like farms, campuses, or distant buildings.
- High-noise environments, where Wi-Fi 6’s efficiencies shine through interference.
- Long-duration outdoor setups, where robust hardware and efficient power usage matter.
Final Word
The MikroTik LHG XL 5 ax stands out as a smart, high-performance option for anyone who needs dependable long-range wireless connectivity. With advanced Wi-Fi 6 tech, optimized efficiency, built-in durability, and strong software features, it’s an investment in reliable infrastructure that pays dividends—without inflating your budget.
FAQs
Q1: Is the LHG XL 5 ax backward compatible with older MikroTik devices?
A: Yes. While it uses Wi-Fi 6 for improved performance, it also supports legacy standards like 802.11a/n/ac to ensure compatibility with older setups.
Q2: Can the LHG XL 5 ax be powered without a dedicated power outlet?
A: Absolutely. It runs on Passive PoE (12–28 V), so you can power it through the Ethernet cable—ideal for tower or rooftop installations.
Q3: Who should consider using this device?
A: It’s perfect for ISPs, farms, campuses, and businesses needing long-distance point-to-point connectivity without investing in expensive fiber links.
Q4: How is it different from the standard LHG 5 ax model?
A: The XL version has a stronger 27 dBi antenna, extending its range to ~30 km compared to ~20 km in the regular LHG 5 ax.
