CRS418-8P-8G-2S+RM

CRS418-8P-8G-2S+RM

1,648.95 AED 1,648.95 AED

Not Available For Sale

This combination does not exist.

Contact Us

Share

MikroTik CRS418-8P-8G-2S+RM – The Ultra-Flexible PoE & 10G Hybrid SwitchWhy CRS418 ImpressesTechnical SpecificationsUse Case ScenariosFinal ThoughtsFrequently Asked Questions (FAQ)

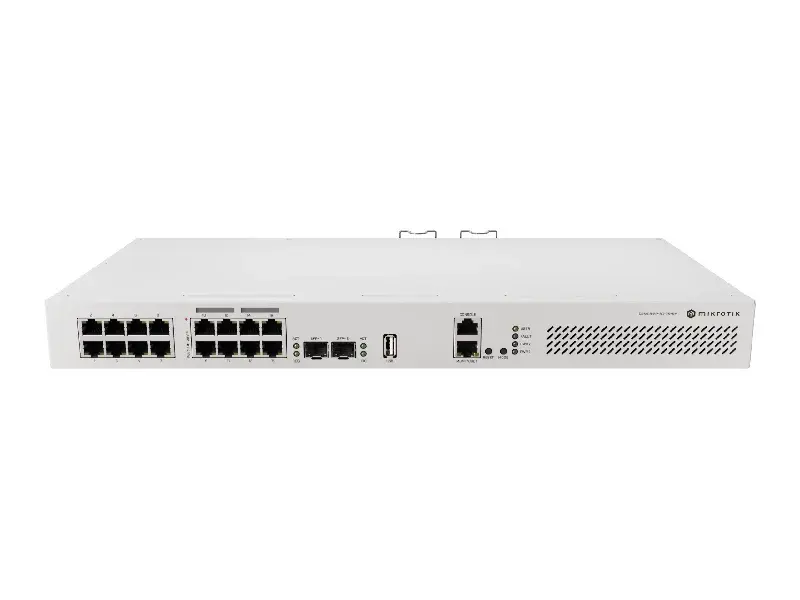

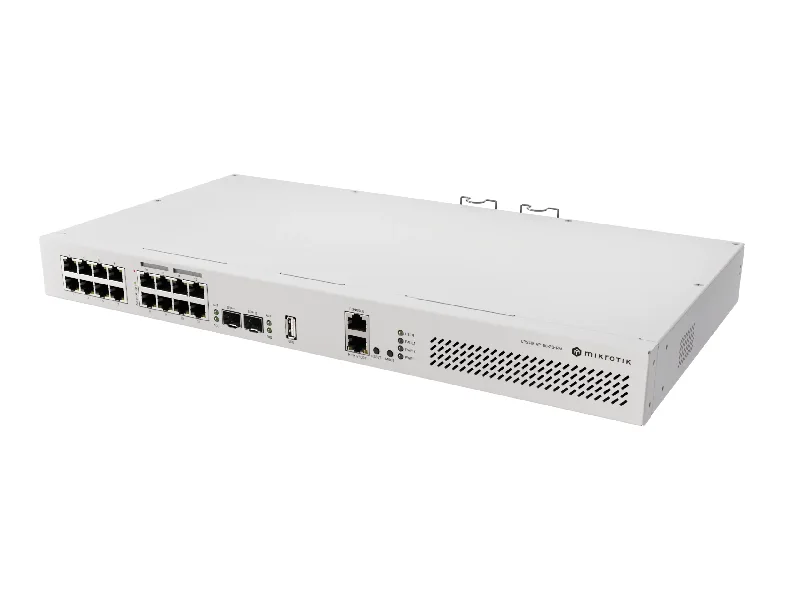

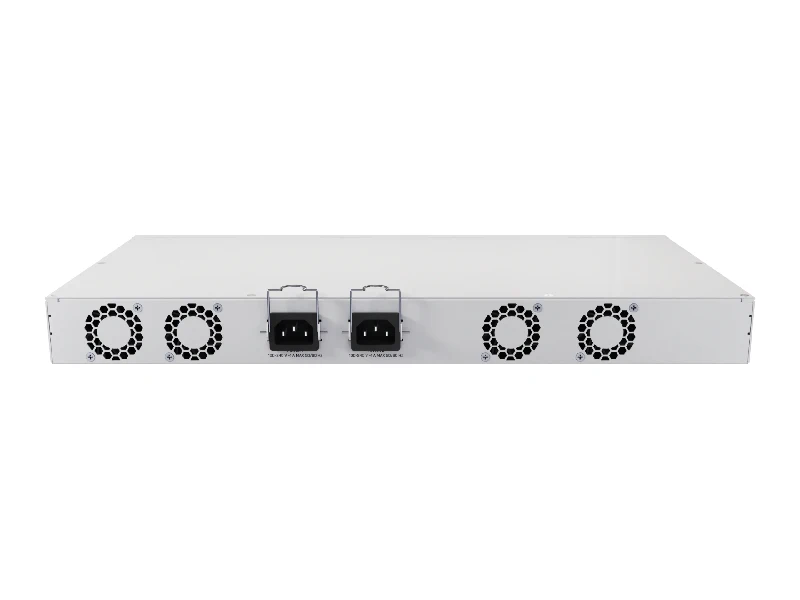

MikroTik CRS418-8P-8G-2S+RM – The Ultra-Flexible PoE & 10G Hybrid Switch


When your network needs to be both simplified and powerful, the MikroTik CRS418‑8P‑8G‑2S+RM is the all-in-one solution that delivers. Designed for modern offices, tech labs, and smart building infrastructures, this device combines switching, routing-capable horsepower, PoE power delivery, and future-proof fiber uplinks—all packed into a sleek 1U rackmount case.

Why CRS418 Impresses

Say goodbye to cluttered racks and multiple gadgets. The CRS418 brings together:

  • 16 Gigabit ports, with 8 capable of PoE‑out (802.3af/at and passive 24V), giving you up to 150W total PoE power.
  • Two 10G SFP+ ports for high-speed uplinks—ideal for connecting to NAS devices, backbone switches, or fiber links.
  • A powerful 2.2 GHz quad-core ARM IPQ‑8072 CPU, which can handle not just advanced switching but also L3 hardware offloading and light routing tasks.
  • A dedicated Gigabit management port with direct CPU access, plus a USB 3.0 port for storage or configuration tasks.

For users migrating from older MikroTik units like the CRS320 or CRS328, the CRS418 provides up to 3× the performance, smarter PoE control, and streamlined management in a durable rack-space-friendly format. Facebook+11mikrotik.com+11blog.streakwave.com+11blog.streakwave.comISP Supplies+3Baltic Networks+3Baltic Networks+3

Technical Specifications

Feature

Specification

Product Code

CRS418‑8P‑8G‑2S+RM

Architecture

ARM 64-bit

CPU

Quad-core IPQ‑8072 — 2208 MHz

RAM

1 GB DDR3L

Storage

128 MB NAND

Gigabit Ethernet Ports

17 total (16 + 1 management)

PoE‑out Ports

Ports 9–16 support 802.3af/at or 24V passive, up to 1.1 A (per port <30 V), 0.56 A (per port >30 V); 5.4 A total, 150 W max mikrotik.com+7cdn.mikrotik.com+7WavOnline+7

10G Uplinks

2 × SFP+

USB Port

1 × USB 3.0 Type A (can act as storage or config interface) mikrotik.comISP Supplies

Switch Chip

98DX226S

RouterOS

v7, License Level 5

PoE Efficiency

Smart current limiting per port, total 150 W PoE cdn.mikrotik.comISP Supplies

Power Supply

Dual redundant AC inputs, 100–240 V

Power Consumption

~28 W idle; ~215 W max MikroTik Helpcdn.mikrotik.com

Cooling

4 active fans

Operating Temp.

–20 °C to +70 °C

Dimensions

443 × 230 × 44 mm (1U) ISP SuppliesMikroTik Help

Certifications

CE, EAC, RoHS

Included Accessories

2 × IEC power cords, rackmount ears, fastening kit mikrotik.comcdn.mikrotik.com

Use Case Scenarios

  • Mid-sized offices: Eliminate multiple devices—just one switch to handle PoE cameras, APs, uplinks, and routing.
  • Tech labs or classrooms: Deploy power to devices without separate injectors and manage networks from a single console via RouterOS.
  • Remote branches or compact server rooms: Rack-efficient, multi-function core—with USB for backups and a dedicated management port for easy access.

Final Thoughts

The MikroTik CRS418-8P-8G-2S+RM is not just another network switch—it’s a smart, versatile hub designed for environments that demand power, cleanliness, and flexibility. With PoE-out, 10G uplinks, USB expandability, and RouterOS intelligence—all in a single 1U package—it’s a modern network builder’s dream.

Frequently Asked Questions (FAQ)

Q1: Can CRS418 do routing tasks like a basic router?

A: Yes! With RouterOS v7 and L3 hardware offloading, it’s more than a switch. It can handle firewalls, VLAN routing, and CAPsMAN without breaking a sweat. Facebook+10cdn.mikrotik.com+10blog.streakwave.com+10blog.streakwave.com

Q2: What types of PoE does it support?

A: The device supports both 802.3af/at and 24V passive PoE, smartly limiting current per port and delivering up to 150 W of total PoE power. cdn.mikrotik.comISP Supplies

Q3: Can I connect storage to CRS418?

A: Absolutely—use the USB 3.0 port for external storage, logs, backups, or config transfers.

Q4: Is the power supply redundant?

A: Yes. Dual AC inputs allow both reliability and uptime in racks where power stability matters.

Q5: How much power does it use?

A: Roughly 28 W at idle; under full load (maximum PoE, fans, CPU), it can reach around 215 W. MikroTik Helpcdn.mikrotik.com

MikroTik Chateau 5G R17 ax – Premium 5G & Wi-Fi6 Router for High-Speed Mobile InternetWhat Makes the Chateau 5G R17 ax Stand OutTechnical SpecificationsComparison: Chateau 5G R17 ax vs ATL 5G R16Final Thoughts & Call to ActionFrequently Asked Questions (FAQ) – MikroTik Chateau 5G R17 ax

MikroTik Chateau 5G R17 ax – Premium 5G & Wi-Fi6 Router for High-Speed Mobile Internet

If you're seeking lightning-fast mobile broadband with solid Wi-Fi inside your home or office, the Chateau 5G R17 ax is designed to deliver. This router merges the latest Release 17 5G modem, dual-band Wi-Fi 6 coverage, and modern hardware to support intense data demands, heavy streaming, gaming, and advanced networking—without sacrificing reliability.

What Makes the Chateau 5G R17 ax Stand Out

  • Next-Gen 5G Performance: Equipped with the RG650E-EU modem, the Chateau supports Release 17 5G in both standalone (SA) and non-standalone (NSA) modes. This means blistering download rates up to 7.01 Gbps and uploads up to 1.25 Gbps on 5G SA, while also offering fallback on LTE Cat 20 when needed.
  • Dual-Band Wi-Fi 6: With simultaneous 2.4 GHz (574 Mbps) and 5 GHz (1200 Mbps) Wi-Fi 6, Wi-Fi connections feel smoother and more stable—especially in multi-device environments and areas with many wireless networks.
  • Wide Band Support & Antenna Quality: Full support for many FDD/TDD bands in 5G and LTE, 4×4 downlink MIMO, dual Wi-Fi antenna chains, and solid external antenna options. Great reception, even at weak signals.
  • Robust Hardware & RouterOS v7: Powered by a quad-core IPQ-6010 CPU (1.8 GHz), 1 GB RAM and 128 MB storage. Comes with RouterOS v7, License Level 4, giving you access to IPSec acceleration, VLANs, QoS, security tools, and frequent firmware updates.
  • Flexible Ports & Features: 4 × Gigabit Ethernet ports, plus one 2.5 Gbps port for high-speed wired devices. Has a Micro-SIM slot and built-in eSIM for carrier flexibility. USB Type A port included for storage or peripherals.

Technical Specifications

Feature

Specification

Product Code

S53UG+5HaxD2HaxD-TC&RG650E-EU

CPU Architecture & Speed

ARM 64-bit, Quad-Core IPQ-6010, 1.8 GHz nominal

RAM / Storage

1 GB RAM, 128 MB NAND Flash

Wireless Bands

Dual-band Wi-Fi 6: 2.4 GHz (802.11b/g/n/ax), 5 GHz (802.11a/n/ac/ax)

Wi-Fi Data Rates

Up to 574 Mbps on 2.4 GHz, 1200 Mbps on 5 GHz

Antenna Gain

3 dBi (2.4 GHz), 6 dBi (5 GHz)

5G / LTE Support

5G SA & NSA, LTE Cat 20, many FDD + TDD bands, 4×4 DL MIMO, 1×1/2×2 UL depending on mode

Ethernet Ports

4 × 1 Gbps + 1 × 2.5 Gbps port

SIM Options

Micro-SIM slot + built-in eSIM

USB Port

USB 2.0 Type-A

Power

DC jack 12-28 V, adapter included (24 V 1.2 A); max power draw ~26 W, typical ~16-18 W without external attachments

Operating Temp

–40 °C to +70 °C

Certifications

CE, EAC, RoHS

Additional Monitors / Buttons

CPU temp, PCB temp, mode button, voltage monitor, sync/WPS buttons MikroTik



Comparison: Chateau 5G R17 ax vs ATL 5G R16

Feature

Chateau 5G R17 ax

ATL 5G R16

5G Modem Standard

Release 17 (RG650E-EU), higher DL/UL rates

Release 16, slightly lower throughput in many bands

Wi-Fi

Dual-band Wi-Fi 6 with 2.4 + 5 GHz, good data rates, robust antenna

Also Wi-Fi 6, but lower performance in certain antenna gains

Ethernet Ports

4 × 1 Gbps + 1 × 2.5 Gbps

Usually 1 Gbps only ports or fewer higher-speed ports

SIM Flexibility

Micro SIM + eSIM built-in

Also supports SIMs but often lacks built-in eSIM or fewer options

Power Consumption

Up to ~26 W under full load

Slightly less efficient in older models

Best Use Case

Homes/offices needing desktop router with high 5G speed + strong WiFi inside

More tailored for simple outdoor CPE or fallback links

Ideal Use Cases

  • Households or small offices desiring ultra-fast 5G connections plus strong WiFi coverage.
  • Mobile professionals who switch between ISPs and benefit from dual-SIM/eSIM functionality.
  • Users streaming 4K/8K content, gaming, or using bandwidth-intensive apps concurrently.
  • Edge locations needing reliable backup to wired connections or wanting a high-performance main internet line without fiber.

Final Thoughts & Call to Action

The MikroTik Chateau 5G R17 ax is a cutting-edge router that bridges the gap between mobile network performance and home/office WiFi flexibility. With its high-speed 5G Release 17 support, dual-band WiFi 6, robust hardware, and flexible SIM options, it’s built to handle modern internet demands without compromise.

Frequently Asked Questions (FAQ) – MikroTik Chateau 5G R17 ax

Q1: What makes the Chateau 5G R17 ax different from older 5G routers?

A: It uses a Release 17 5G modem (RG650E-EU), which delivers faster download speeds, lower latency, and broader band support compared to older 5G models.

Q2: Does it support eSIM as well as physical SIM cards?

A: Yes. The router includes both a micro-SIM slot and a built-in eSIM, so you can easily switch between carriers without replacing the physical card.

Q3: Can I use the Chateau 5G R17 ax as my primary home internet connection?

A: Absolutely. With 5G speeds up to 7 Gbps and dual-band Wi-Fi 6, it’s powerful enough to replace wired broadband for streaming, gaming, and remote work.

Q4: How good is the Wi-Fi coverage inside a house or office?

A: It offers 2.4 GHz and 5 GHz Wi-Fi 6 with multiple antennas (3 dBi & 6 dBi gain), providing stable coverage even in multi-room environments with many devices.
